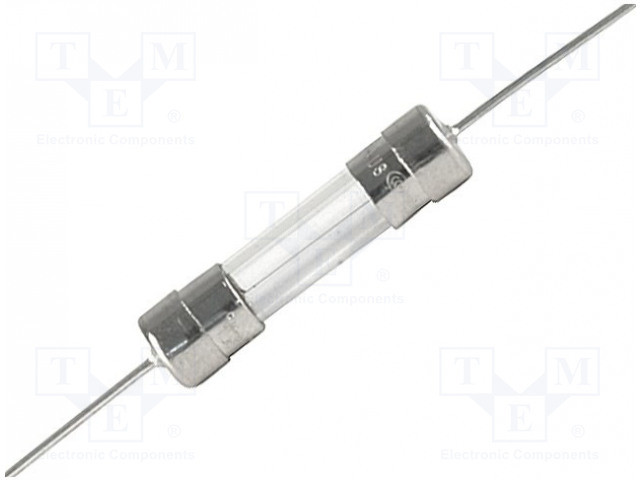

Fusible retardados 3,15A 250VCA 5x20mm. Mod. 0001.2509.PT
Especificaciones:
| SCHURTER | |
| de cartucho | |
| retardados | |
| 1.5kA | |
| 3.15A | |
|
Rated volage U0/U
U0 = cable nominal voltage between the conductor and the metal covering or earth U = cable nominal voltage between the phase conductors |
250V CA |
| 5x20mm | |
| 1,5 In: min 1 h, 10 In: max 150 ms, 10 In: min 10 ms, 2,1 In: max 30 min., 2,75 In: max 80 s, 2,75 In: min 750 ms, 4 In: max 5 s, 4 In: min 95 ms | |
| 140mV | |
| SPT | |
| para soldar |
